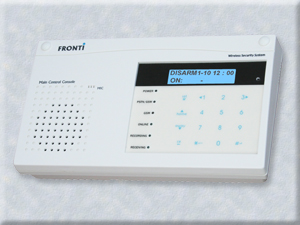

FS240D IOT Wi-Fi Alarm console with Touch pad & LCD
FS240A

The FS240D is IOT Wi-Fi wireless alarm console that can combine with FS330A APP via cloud server to setting working/program data and receive alarm data.

The system has completely wireless data communication between wireless sensors and wireless external siren. Two partitions are separated to Arm/Disarm control, for main house and office or garage house, both area are protected. It can be combined with Fronti other accessories like PIR, Door/Window sensor, AC power detector, temperature sensor, wireless siren, AC power switch and ….etc. They are completely wireless communication controlling system.
It is a new security console and simple install and easy operation on smart phone APP.
User can on APP via cloud server on anytime and anywhere working with Wi-Fi console.

  1.  Two partitions of working mode & 70pcs wireless sensors to trigger alarm & 10pcs remote controller.
  2. 10 passwords available on PC, SMS and Keypad to set working mode.
  3. 70pcs sensors can be set to have alarm function of 24H, bypass, delay, door chime and silent.
  4. Touch pad for operating alarm working mode, LCD display for working mode, 150logs alarm event.
  5. Set program’s data by keypad, PC and APP.
  6. Set to save local language to the console / event / sensor’s name for the report.
  7. Low battery supervision is on the console and on each individual sensor.
  8. Built-in NC/NO 2wires zone input and 2wire alarms output for external siren and NC/NO switch.
  9. With 2 channels of temperature sensors which can display INT/EXT -40 to +60℃level data.
  10. It can control the FS148S wireless external siren and report event to FS310W wireless keypad LCD.
  11. User can on app to control the AC power switch ON/OFF.
  12. Temperature sensors HI/LO level can control the AC power switch ON/OFF.
  13. Timers can control the AC power switch ON/OFF.
  14. The APP will on local IP router scan the Wi-Fi module then register to cloud server.
  15. It can setting working mode by remote controller or smart phone IOT APP.
  16. The smart phone IOT APP can view the all setting program alarm data and all event log of the console.
  17. Alarm will report event with alarm event, sensor number/name and user name address.
FS240D IOT Wi-Fi Security Touch pad & LCD & APP
AC adapter 100-240V, 12VDC, 2A
Rechargeable Back-up battery
Power Source 12VDC, 2A by AC adapter
Battery Back-up time 12HRS (Min)
Back-up Battery 9.6V/1.5Ahr rechargeable
Working Current 500mA (Max)
Stand-by Current 80mA (Max)
Working temperature range -10 deg℃to 60 deg℃
Dimensions 220L x 128W x 56H(mm).Weight:950g
Working frequency 433.92.MHz or 869.25MHz
Package Dimension 290L x 180W x 70H(mm).Weight:1.36kg
